LTSV > Rail Data > Data > Codes > TOPS List > YEA-A
Main Details PDF
TOPS Code/Class: YEA-A Previous Next
TOPS Category: ?This is my own (unofficial) means to categorise TOPS codes based on what they relate to and whether they are long (4 characters, i.e. including sub-codes) or short (3 characters) LW - Long Code, Wagons In selection ?This works on your last-used TOPS selection, including any filters and sort orders. Buttons will not show if the current TOPS code was not in your last selection, or if you are at the beginning or end of the data set.
TOPS GENKOC: ?The first character of a TOPS code is known as the GENKOC and indicates the general type of rolling stock (e.g. 1xx are DMUs). Y - Bogie Departmental Wagons Overall ?This works on the overall TOPS code list without any filtering or sorting applied.
TOPS BRAKTY: ?The third character of many TOPS codes is the BRAKTY, indicating the type of braking equipment fitted (e.g. A indicates air brakes). A - Air brakes
Parent: YEA (Bogie Long-Welded Rail Carrier)
Description: Long welded rail wagon, 'Perch'
Numbers: ?Numbers are only shown where the ranges were limited. Otherwise, refer to the listings section below. The letter r after the numbers indicates this is a range, with not all numbers in the sequence used.
Status: Current
Date On: b?/?/2000
Origins:
Date Off:
Destiny:
Key Photo:
Icon:
Sub-codes ?If this code had any sub-codes, they will be listed here.
None found
Designs/Diagrams ?Design codes and diagrams related to this code (and any sub-codes where relevant) are listed here.
19 designs/diagrams currently listed against this TOPS code/class (including any sub-codes).
DesignClassSeriesDescriptionStatus
YE001A YEA BR TOPS Wagon Design Code Current
YE001B BR TOPS Wagon Design Code TBC
YE001C BR TOPS Wagon Design Code TBC
YE007A YEA BR TOPS Wagon Design Code Current
YE007B YEA BR TOPS Wagon Design Code Current
YE007C YEA BR TOPS Wagon Design Code Current
YE007D YEA BR TOPS Wagon Design Code Current
YE007E YEA BR TOPS Wagon Design Code Current
YE007F YEA BR TOPS Wagon Design Code Current
YE007G YEA BR TOPS Wagon Design Code Current
YE007H YEA BR TOPS Wagon Design Code Current
YE009A YEA BR TOPS Wagon Design Code Current
YE009B YEA BR TOPS Wagon Design Code Current
YE009C YEA BR TOPS Wagon Design Code Current
YE010A YEA BR TOPS Wagon Design Code Current
YE010B YEA BR TOPS Wagon Design Code Current
YE010C YEA BR TOPS Wagon Design Code Current
YE010D YEA BR TOPS Wagon Design Code Current
YE010E YEA BR TOPS Wagon Design Code Current
Batches ?Batches of numbers built or converted to this TOPS code are listed below. Note that only codes that were wholly to this code will appear, otherwise refer to the listings section for other numbers.
There are 13 batches recorded as being wholly to this TOPS code (including any sub-codes).
Numbers Class Design Type Qty Origin Built/Converted Date/s Lot
DB979000-DB979008 YEA-A 51t 'Perch' Bogie CWR Wagon (inner) 9 New BR, Shildon 1983 4015
DB979009-DB979035 YEA-A 51t 'Perch' Bogie CWR Wagon (inner) 27 New BR, Doncaster 1984 4035
DB979036-DB979083 YEA-A 51t 'Perch' Bogie CWR Wagon (inner) 48 New BR, Doncaster 1985 4047
DB979084-DB979131 YEA-A 51t 'Perch' Bogie CWR Wagon (inner) 48 New BR, Doncaster 1985 4055
DB979400-DB979405 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 6 New BR, Doncaster 1985 4045
DB979400-DB979403 (2 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 4 Renumbered 1986
DB979404-DB979409 (2 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 6 Renumbered 1986
DB979406-DB979411 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 6 New BR, Doncaster 1985 4053
DB979410-DB979415 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 6 Renumbered 1986
DB979429 YEA-A 51t 'Perch' Bogie CWR Wagon (clamping) 1 Renumbered 2005
DB979600-DB979603 YEA-A 36t 'Perch' Bogie CWR Wagon (stabling) 4 New BR, Shildon 1982-1983 4037
DB979604-DB979609 YEA-A 36t 'Perch' Bogie CWR Wagon (stabling) 6 New BR, Doncaster 1985 4044
DB979610-DB979615 YEA-A 36t 'Perch' Bogie CWR Wagon (stabling) 6 New BR, Doncaster 1985-1986 4052
Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this TOPS class/code are listed below. If no profiles are shown, try looking under the parent code (in main details section above)

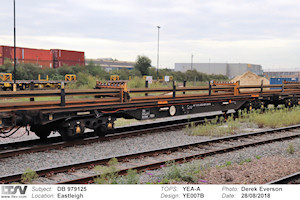

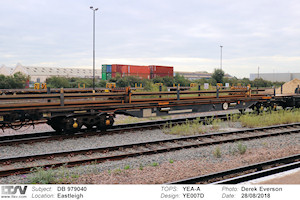

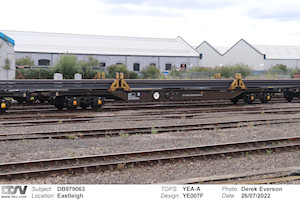

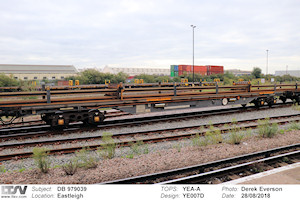

Photos - Internal
There are 22 photos of this type (including any sub-codes). The 10 most recently added are shown below.


Photos - External
No external photos of this item yet.
Listings
There are 738 listings (with 149 distinct numbers) for this TOPS code/class (including any sub-codes).


Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.
Related Information
To be added
Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are no dimensions recorded for this TOPS code.
Drawings ?Drawings are normally referenced to specific design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available. If no drawings are listed here, try looking at related designs/diagrams (above).
There are no drawings referenced for this TOPS code.
Data History
Record added 01/01/2020 by Thomas Young
This item has not been edited.
