Main details

Design/Diagram series:	BR Pre-TOPS Carriage Diagram		Previous	Next
Design/Diagram ID:	800	In selection ?This works on your last-used designs selection, including any filters and sort orders. Buttons will not show if the current design was not in your last selection, or if you are at the beginning or end of the data set.
Description:	12 ton Insulated Fish Van	Overall ?This works on the overall designs list without any filtering or sorting applied.
TOPS code:
On Date:
Status:	Defunct
Off Date:
Key Photo:
Icon:
Source of information:	Departmental Coaching Stock 4th Edition, Platform 5, 1990

Batches
There are 4 batches recorded as being wholly to this design code/diagram.

Numbers	Class	Design	Type	Qty	Origin	Built/Converted	Date/s	Lot
87000-87499		800	Fish Van	500	New	BR, Earlestown	1955	30125
87500-87692		800	Fish Van	193	New	BR, Earlestown	1960	30344
87693-87957		800	Fish Van	265	New	BR, Earlestown	1961	30384
87958-88057		800	Fish Van	100	New	BR, Earlestown	1961	30442

Profiles ?Profiles provide an overview of the histories of various types of train. Profiles that are relevant to this design/diagram are listed below.

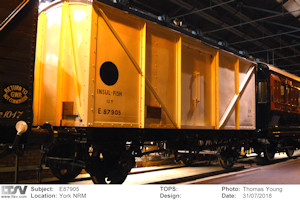

Photos - Internal
There are 2 photos of this design on this website.

Photos - External
No external photos of this item yet.

Listings
There are no listings to this design.

Notes
No notes have been left yet. ?There may be some notes posted but which have not yet been approved.

Related information

Dimensions ?Dimensions are normally recorded against design/diagram numbers. They can be recorded against batches, lots or TOPS codes if the design/diagram is not available.
There are no dimensions recorded for this design.

Drawings
There are 2 drawings referenced for this design.

Views ? Which views does the drawing include? S = side elevation E = end elevation P = plan view D = detail (scrap views, sections etc)	Quality ? How much detail is in the drawing? High - all/most detail included Medium - some detail omitted Low - basic diagram	Comment	Origins	Source
SE	Medium		BR diagram book	Page 325 of Coaching_Stock_N1_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
SE	Medium		BR diagram book	Page 95 of Coaching_Stock_N2_web.pdf on Barrowmore MRG website http://www.barrowmoremrg.co.uk/Prototype.html
